Ventilated Perforated Cable Support Tray | Custom Dimension Powder Coated Cable Tray for Electrical & Telecom Cabling

  • 1
  • 2

Payment Terms : T/T

Color : Customizable Colors Available

MOQ : Negotiable

Width : 100MM, 50MM, 150mm, 300mm, 450mm, 600mm, 900mm, Customized

Price : Negotiable

Application : Indoor & Outdoor Engineering

Place of Origin : Hebei, China

Packaging Details : According to customer needs

Appearance : Smooth Surface, Deburred Edges

Delivery Time : 15-30 work days

Side Rail Height : Range: 30 mm to 500 mm

Material : Carbon Steel Plate

Certification : ISO9001

Contact Now

Ventilated Perforated Cable Support Tray | Custom Dimension Powder Coated Cable Tray for Electrical & Telecom Cabling

Product Overview
Electrical and telecommunication projects demand dependable cable bearing solutions to sustain long-term safe operation. Our perforated steel cable tray adopts a base panel with elongated ventilation holes, solving the heat buildup problem of loaded power cables efficiently.
This ventilated tray offers stable support for multi-type cables, with natural airflow and draining capacity built into its structure. Optional cover plates can be equipped to shield wiring from flying debris and physical collision.
Engineers should evaluate project conditions before ordering cable trays. Match the load rating according to cable total mass to prevent structural bending. Select suitable surface finishing based on ambient humidity and corrosive substances. Verify all matching hardware including hangers, joint plates and fasteners are dimensionally matched for smooth installation.
Features

  • Optimized Thermal Dissipation & Water Drainage

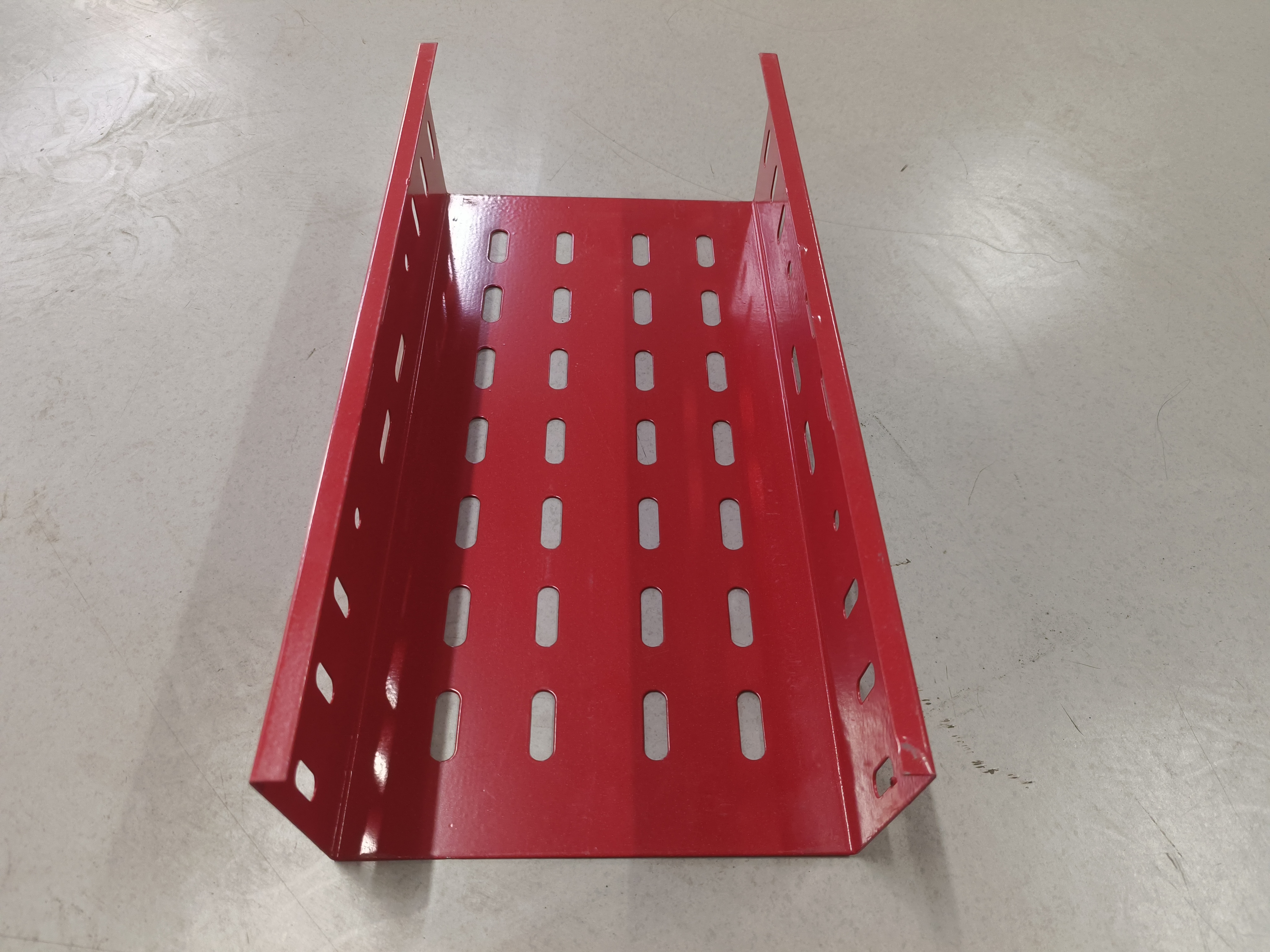

    Long oval holes distributed on the base facilitate air circulation. Heat emitted from power cables dissipates rapidly, and condensed water or rainwater can flow out directly, slowing cable aging.
    Stable U-Shaped Bearing Framework
    Integral U-type structure restrains cables from sliding and shifting. Heightened side barriers keep wiring fixed in place, ideal for horizontal and vertical cabling in industrial plants, office buildings and communication base stations.
    Flexible Modular Construction System
    Modular splicing design supports on-site cutting, extension and angle adjustment. It can adapt to twisted routing paths and uneven installation elevations to satisfy diversified layout requirements on construction sites.
    Multiple Surface Protection Choices
    Options include electrostatic powder spraying (red finish as shown), electro-galvanizing and hot-dip galvanization. Different anti-corrosion treatments allow deployment inside workshops, open outdoor zones and lightly corrosive environments.

Technical Specifications

Attribute Specification
Surface Quality Smooth finished edges, free of sharp burrs
Core Function Air circulation, heat dissipation and water drainage
Installation Type Wall Mount, Ceiling Suspended, Floor Installation
Side Rail Height Customizable: 30 mm – 500 mm
Usage Environment Indoor and Outdoor Engineering Projects
Surface Treatment Powder Coating, Electro Galvanized, Hot-dip Galvanized
Assembly Accessory Connected via joint plates and standard bolts
Load Standard Light Load, Medium Load, Heavy Load Available
Applications

The Galvanized Cable Ladder System efficiently manages and supports cables in various industries including telecommunications, power distribution, and construction. Its corrosion-resistant design makes it ideal for outdoor applications exposed to rain, snow, extreme temperatures, and corrosive environments.

Ventilated Perforated Cable Support Tray | Custom Dimension Powder Coated Cable Tray for Electrical & Telecom CablingVentilated Perforated Cable Support Tray | Custom Dimension Powder Coated Cable Tray for Electrical & Telecom Cabling

Ventilated Perforated Cable Support Tray | Custom Dimension Powder Coated Cable Tray for Electrical & Telecom Cabling
F&Q
Where is the Galvanized Cable Tray made?
Manufactured in Hebei, China
Is the Galvanized Cable Tray certified?
ISO9001 certified
What is the Minimum Order Quantity?
Negotiable based on requirements
How is pricing determined?
Custom pricing available upon request
What are delivery timelines?
15-30 work days with flexible packaging options
